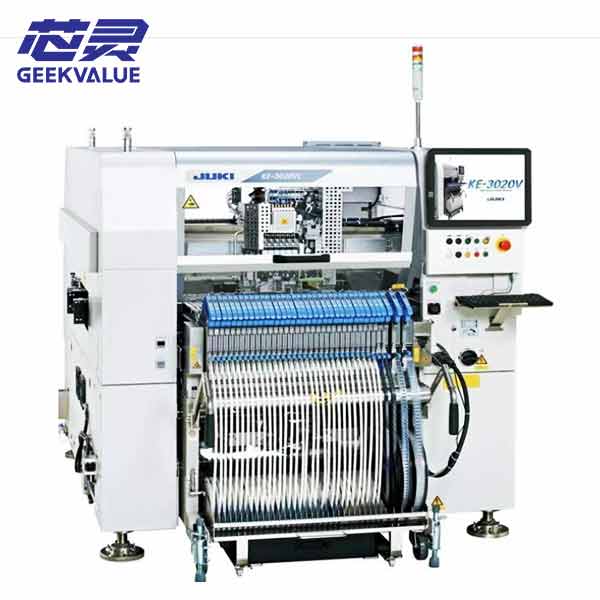

juki ke-3010 placement machine

The core advantages of the JUKI KE-3010 placement machine mainly include the following aspects‌:

‌High efficiency and productivity‌: JUKI The KE-3010 placement machine has high production capacity, with a placement speed of up to 33,000 pieces/hour, which significantly improves production efficiency. Its laser recognition system LNC60 can perform on-the-fly centering recognition, and the recognition speed is increased by 20%, further improving productivity. High precision and stability: The resolution of the KE-3010 placement machine is ±0.05mm, ensuring high-precision placement effects. Its laser recognition system can identify extremely small chip components from 0.4×0.2mm to 33.5mm square components, achieving high-speed and high-quality placement. Versatility and flexibility: The placement machine supports a variety of feeders, including ETF electric feeders and CTF/ATF mechanical feeders. Using the newly launched EF08HD "electric dual-track belt feeder", up to 160 types of components can be placed, which greatly reduces the number of material changes and line change time, and improves production flexibility. Modular design: JUKI KE-3010 is the 7th generation modular placement machine, inheriting the advantages of KE series products, suitable for a variety of production needs, and represents the latest cutting-edge technology.

JUKI KE-3010 is the 7th generation modular placement machine, Chinese name high-speed placement machine, with faster speed, higher quality, improved production performance, etc. It is a member of the KE series products independently developed by JUKI. Since 1993, JUKI has started selling KE series products, which have been well received by customers for many years.

Functions and performance characteristics

‌Patch speed‌:

Patch components: 23,500 CPH (laser recognition/optimal conditions)

Patch components: 18,500 CPH (laser recognition/according to IPC9850)

IC components: 9,000 CPH (image recognition/when using MNVC option)‌

‌Component range‌:

Supports placement from 0402 (UK 01005) chips to 33.5mm square components‌

‌Feeder‌:

Adopts electric double-track feeder, which can load up to 160 components‌

‌Technical features‌:

High-speed continuous image recognition (option)

Corresponding to long-size substrates (option)‌

Technical parameters‌Substrate size‌: M-type substrate (330mm×250mm), L-type substrate (410mm×360mm), L-wide substrate (510mm×360mm), XL substrate (610mm×560mm) ‌

‌Component size‌: Laser recognition 0402 (British 01005) chip ~ 33.5mm square component, image recognition standard camera 3mm*3 ~ 33.5mm square component ‌ ‌ Power supply‌: 220V ‌ ‌ Weight‌: 1900kg ‌ ‌ Application scenarios and advantages ‌ JUKI KE-3010 is suitable for the production of various electronic products, especially for production lines that require high-speed, high-quality patch. Its modular design makes the production line more flexible, and various production lines can be flexibly configured according to production volume, thereby improving production efficiency and product quality
