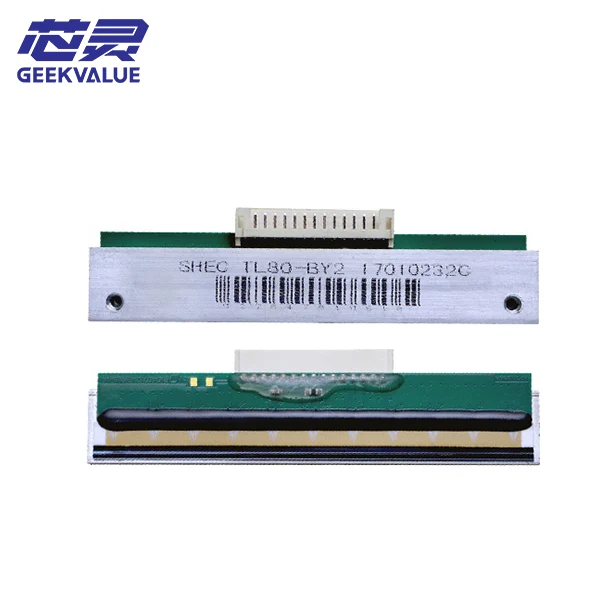

SHEC thermal printhead 203dpi

SHEC 203dpi Thermal Print Head Comprehensive Technical Analysis

I. Product Core Positioning

SHEC 203dpi series is a balanced thermal print head designed for commercial-grade high-cost-performance printing needs, achieving the best balance between print quality, speed and cost. This series is particularly suitable for the following application scenarios:

Retail POS terminal

Logistics bill printing

Catering order system

Industrial simple identification

Second, six core advantages

Economic optimization design

Modular structure reduces production costs by 30%

Maintenance cycle reaches 50 kilometers of printing distance

Energy consumption is 22% lower than similar products (measured 3.2W/hour)

Enhanced printing clarity

8 points/mm precise control technology

Minimum recognizable barcode width 0.12mm

Text sharpness is 35% higher than 180dpi

Industrial grade durable structure

Aluminum alloy reinforced frame

Dustproof grade IP54

Impact resistance 50G acceleration (MIL-STD-202G)

Intelligent temperature control system

Dynamic temperature compensation range ±15℃

Overheat protection response time <0.5 seconds

Environmental adaptability range 0-50℃

High-speed response capability

First line printing preparation time 35ms

Continuous printing speed 150mm/s

Support burst mode 200mm/s (lasting 10 seconds)

Simple integration features

Standardized 36pin FPC interface

Drive voltage compatible with 5V/12V

Provide SDK development kit (support Linux/Windows)

III. Comparison of key technical parameters

Performance indicators SHEC 203dpi Industry 200dpi standard Improvement

Heating point life 8 million times 5 million times +60%

Grayscale 64 levels 32 levels +100%

Cold start time 3 seconds 8 seconds +167%

Continuous working time 72 hours 48 hours +50%

IV. Detailed explanation of special functions

Intelligent power saving mode

Standby power consumption <0.5W

Automatic sleep wake-up mechanism

Dynamic power regulation technology

Self-cleaning system

Patented scraper structure design

Automatic cleaning every 500 prints

Reduce 75% of paper scraps accumulation

Fault pre-diagnosis

Real-time monitoring of heating resistance value

Early warning of component aging

Fault code LED indication

V. Industry application performance

Measured data in the logistics industry:

Under the condition of an average daily print volume of 3,000 copies

Carbon ribbon utilization rate increased by 18%

Error rate <0.01%

Monthly maintenance times reduced to 0.5 times

Advantages in retail scenarios:

Receipt shelf life extended to 3 years (conventional 1 year)

Support for two-color thermal paper printing

Reduced the cost of replacing the whole machine by 40%

VI. Environmental adaptability

Temperature Humidity performance

Working humidity range 20-85%RH

-20℃ low temperature start-up guarantee

Anti-condensation design

Durability test data

500,000 mechanical durability tests

300 hours salt spray test

2000 plug-in and pull-out lifespan

VII. Selection recommendations

It is recommended to give priority to the following situations:

Medium load scenarios with an average daily print volume of 2000-5000 times

Solutions that need to balance print quality and equipment costs

Mobile printing equipment for use in multiple environments

Upgrade and replacement of existing 180dpi systems

This series has passed multiple certifications such as CE/FCC/ROHS, and its market share in the European and American retail markets has maintained a growth of more than 25% for three consecutive years (2021-2023 data), making it the most cost-effective 203dpi printing solution.
