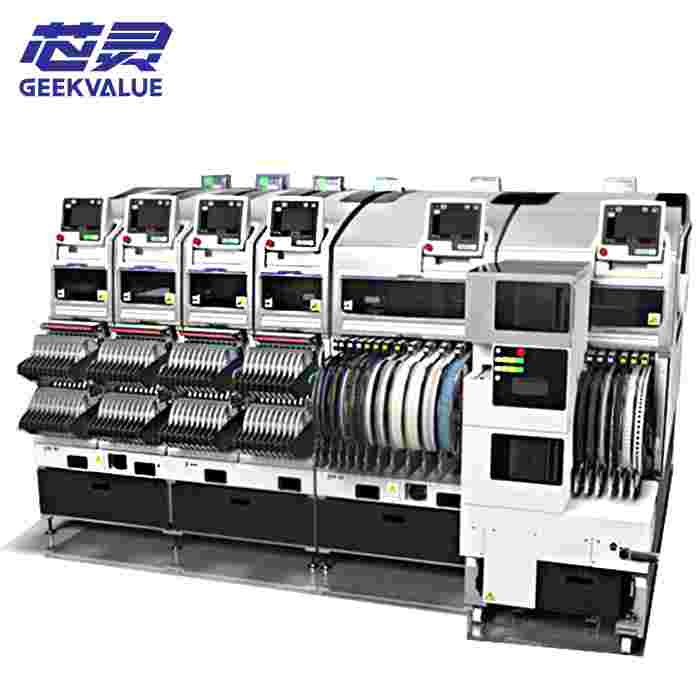

fuji nxt iii m6 smt chip mounter

‌The advantages and functions of Fuji NXT III M6 placement machine mainly include the following aspects‌‌:

‌Improving productivity‌: Fuji NXT III M6 placement machine can improve the placement capacity of all components from small components to large special-shaped components through high-speed XY manipulator and tape feeder, and the use of the newly developed camera "fixed dynamic camera". In addition, the use of the new high-speed work head "H24 work head" makes the component placement capacity of each module up to 35,000CPH, which is about 35% higher than NXT II. ‌

‌Job placement‌: NXT III can not only correspond to the smallest 0402 components currently used, but also can mount the next generation of 03015 ultra-small components. By adopting a machine structure that is more rigid than existing models, independent server control technology, and component image recognition technology, the industry's top small chip placement accuracy can be achieved: ±25μm (3σ) Cpk≧1.00

‌ Improved operability ‌: NXT III inherits the highly praised language-free GUI operating system on the NXT series machines, adopts a new touch screen and updates the screen design. Compared with the existing operating system, the number of keystrokes is reduced, which facilitates the selection of subsequent instructions, improves operability and reduces operating errors ‌ ‌

‌ Highly compatible ‌: NXT III can use the work head, nozzle placement table, feeder and tray component supply units used in NXT II, and the main units such as material station transport and material station transport batch replacement trolley can be used directly after replacement ‌ ‌ ‌ Wide range of applications ‌: NXT III is suitable for circuit boards of various sizes, ranging from 48mm×48mm to 534mm×610mm (double transport track specifications) or 534mm×510mm (single transport track specifications). In addition, it can handle up to 45 types of components, with high flexibility and flexibility‌
