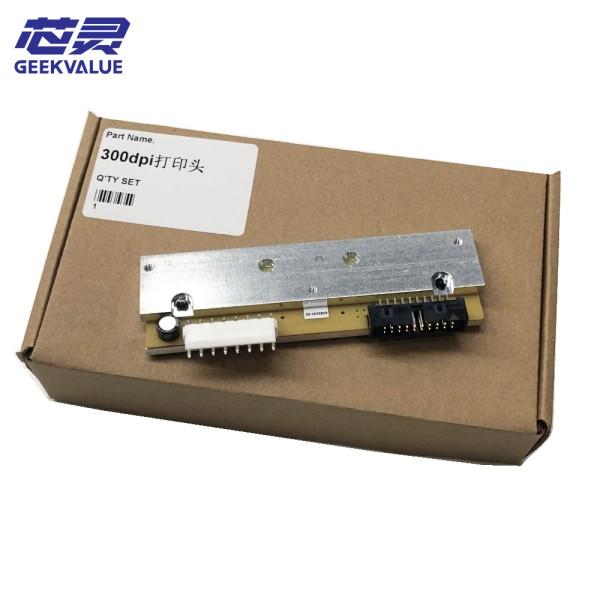

Kyocera 4-inch 300-dot thermal printhead

Kyocera KT4-300 series thermal print head is the latest high-performance thermal printing solution developed by Kyocera Corporation of Japan. It adopts advanced ceramic substrate technology and precision processing technology, and is designed for high-precision and high-speed printing needs. This product is upgraded based on the original 200-dot print head, and the printing resolution is increased to 300dpi (12 dots/mm), which is suitable for a wider range of industrial application scenarios.

Core technology analysis

Precision heating system

Uses 300 independent heating units, each unit is only 42μm×42μm in size

Heating element spacing is 0.083mm (300dpi standard)

Response time <1ms, supports a maximum printing speed of 500mm/s

Temperature control accuracy ±1℃, ensuring printing concentration consistency

Innovative ceramic substrate

Uses high-purity aluminum nitride (AlN) ceramic substrate

Thermal conductivity ≥170W/(m·K), heat dissipation efficiency increased by 40%

Surface gold plating, antioxidant capacity increased by 3 times

Working life can reach 150 kilometers of printing length

Intelligent control system

Integrated temperature sensor and overload protection circuit

Support PWM pulse width modulation, realize 256-level grayscale control

Automatic energy compensation function, extend component life

Performance advantage comparison

Parameter indicators Kyocera KT4-300 Industry standard product

Resolution 300dpi 200-203dpi

Print speed 500mm/s 200-300mm/s

Heating response <1ms 2-3ms

Service life 150km 50-80km

Temperature stability ±1℃ ±3℃

Typical application scenarios

High-end logistics labels

Support high-density QR code printing (QR Code)

Recognition rate>99.99%

Adapt to various ambient temperatures (-20℃~60℃)

Medical image output

Meet DICOM standard requirements

16-level grayscale performance

Medical grade material certification

Industrial automation identification

Ink-resistant and corrosion-resistant design

IP54 protection level

24-hour continuous working ability

Financial bill printing

Anti-counterfeiting feature printing

Micro text output capability

Extremely long maintenance cycle (>6 months)

Technology evolution route

Kyocera thermal print head technology has gone through three stages of development:

First generation (2000-2010): 200dpi, life 50km

Second generation (2011-2018): 203dpi, life 80km

Third generation (2019-): 300dpi, life 150km

The latest KT4-300 series adopts a number of innovative technologies:

3D micromachining technology

Nano-level ceramic coating

Intelligent Thermal balance algorithm

Market competitiveness analysis

Cost-effectiveness ratio

Printing cost per kilometer reduced by 35%

Maintenance cycle extended by 2 times

Energy consumption reduced by 20%

Technical barriers

Precision processing technology of ceramic substrates

Thermal field distribution control algorithm

Micro heating element manufacturing process

Industry adaptability

Comply with ISO/IEC standards

UL, CE certification

Support mainstream communication protocols

Future development direction

Intelligent upgrade

Integrated IoT monitoring module

Predictive maintenance function

Cloud data management

Material innovation

Graphene heating element research and development

Self-healing ceramic materials

Environmentally friendly surface treatment

Application expansion

Flexible electronic printing

3D printing assistance

Smart packaging field

Conclusion

Kyocera 4-inch 300-dot thermal print head represents the highest level of current thermal printing technology. Its excellent printing accuracy, ultra-long service life and stable performance make it an ideal choice for industrial-grade printing applications. With the development of intelligent manufacturing and Internet of Things technology, this product will continue to lead the innovation of thermal printing technology and provide more efficient and reliable printing solutions for various industries.
