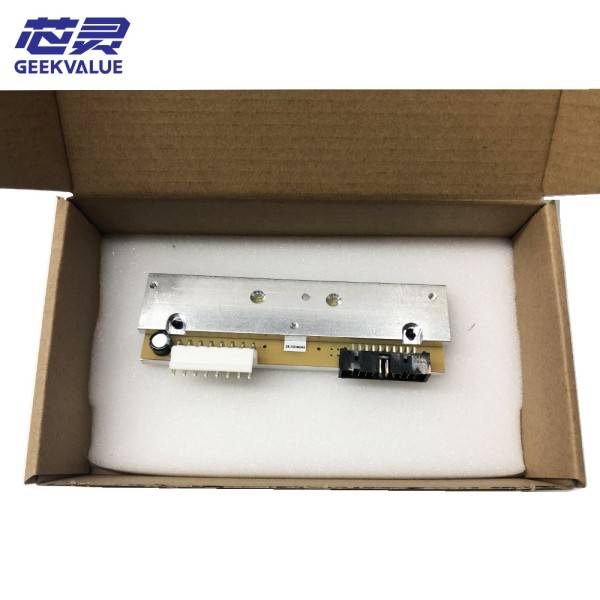

Kyocera clean industrial thermal printhead 300 dpi

Kyocera 4-inch 300-dot thermal print head technology white paper

I. Core function analysis

High-precision printing function

Supports 300dpi (12 dots/mm) ultra-high resolution

Can print tiny characters as small as 0.25mm

Achieve 16-level grayscale control

Accurately restore complex barcodes (including PDF417, Data Matrix, etc.)

High-speed output function

Maximum printing speed 500mm/s

Single-line printing time <3ms

Supports continuous 24-hour uninterrupted operation

Intelligent control function

Automatic temperature compensation system

Dynamic energy regulation technology

Fault self-diagnosis function (including open circuit/short circuit detection)

Media adaptation function

Compatible with thermosensitive materials with a thickness of 0.05-0.25mm

Support special media such as synthetic paper and PET film

Adapt to ambient temperature -20℃ to 60℃

II. Key role analysis

Role in automated production lines

Realize product traceability identification

Complete real-time data printing

Ensure traceability of production information

Role in logistics management

High-density barcode generation

Transport label printing

Warehouse management identification

Role in the medical field

Medical image output

Test report printing

Medical records Label making

Role in the retail industry

POS receipt printing

Electronic scale label

Promotional information output

III. Detailed explanation of working principle

Basic workflow

Data reception (via parallel port/USB/network)

Line buffer storage

Heating element drive

Thermal conduction imaging

Cooling reset

Thermal imaging principle

The color developer (Leuco dye) in the thermal paper coating reacts with the acidic substance

Heating to the critical temperature (about 70-90℃) to produce a color reaction

Temperature control determines the color depth

Working principle of heating element

Resistance heating principle (Joule's law)

Pulse width modulation (PWM) control

Thermal diffusion time control (<1ms)

Temperature control mechanism

Platinum resistance temperature sensor

PID closed-loop control algorithm

Ambient temperature compensation

IV. Comparison of technical advantages

Precision advantage

300dpi vs industry standard 200/203dpi

±0.5% print position accuracy

<5μm dot matrix deviation

Speed advantage

500mm/s vs conventional 200-300mm/s

3ms/line vs 5-8ms/line

Supports bidirectional printing acceleration

Durability advantage

150km lifespan vs Conventional 50-80km

Ceramic substrate wear resistance increased by 3 times

Gold-plated electrode anti-oxidation

Energy-saving advantage

Standby power consumption <0.5W

Dynamic power regulation

Energy efficiency increased by 40%

Stability advantage

Printing concentration fluctuation <3%

Strong environmental adaptability

MTBF>30,000 hours

V. Typical application cases

Automotive parts traceability system

Realize DPM direct component identification

Resistant to corrosion such as engine oil and antifreeze

Stable operation in high temperature environment

Pharmaceutical cold chain logistics

Reliable printing in low temperature environment

Special ink anti-counterfeiting label

GMP compliance guarantee

Intelligent warehouse management

High-density QR code printing

Automatic recognition rate>99.9%

7×24 hours operation

Unmanned retail terminal

Quick ticket issuance

Low maintenance requirements

Remote monitoring function

VI. Prospects of technology evolution

Next generation technology direction

400dpi ultra-high resolution

Graphene heating element

Self-healing electrode technology

Intelligent development

Built-in AI chip

Cloud health management

Predictive maintenance

Green manufacturing

Lead-free design

Energy consumption reduced by another 30%

Application of recyclable materials

Conclusion

The Kyocera 4-inch 300-dot thermal print head has set a new industry benchmark in terms of printing accuracy, speed, and durability through innovative ceramic technology and precision processing technology. Its excellent performance and reliable quality assurance make it the preferred printing solution in the fields of industrial automation, intelligent logistics, digital healthcare, etc. With the development of intelligent manufacturing and Internet of Things technology, this product will continue to promote the advancement of thermal printing technology and provide strong technical support for the digital transformation of various industries.
