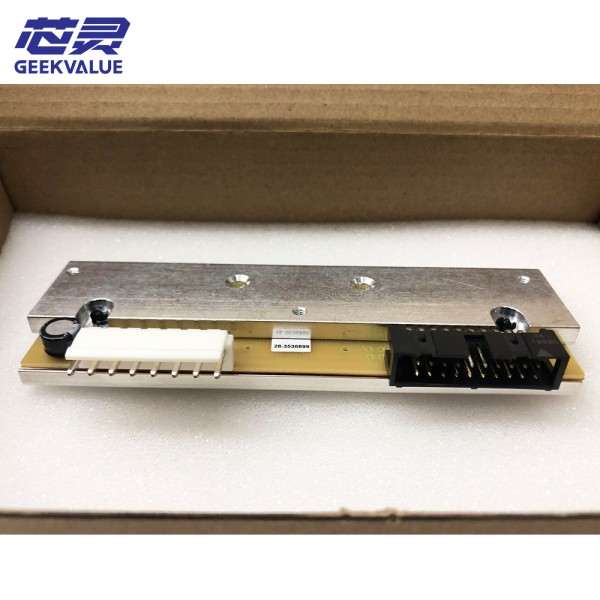

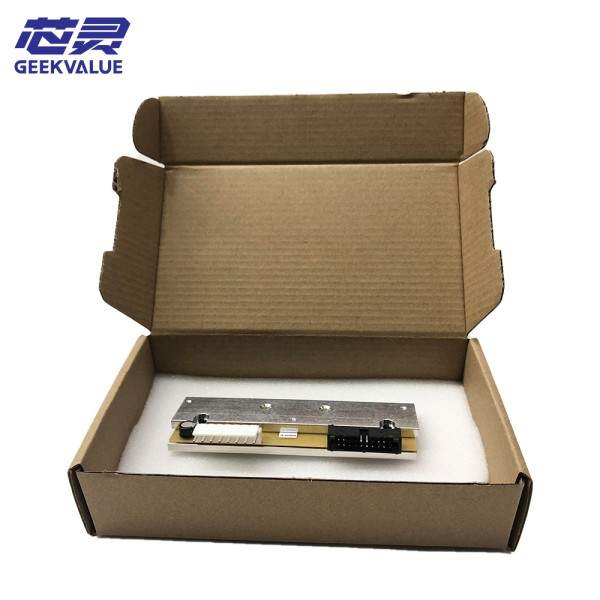

Kyocera 4-inch 200 dpi thermal PrintHead

In today's rapidly developing digital printing and industrial identification fields, the performance of the print head as a core component directly determines the output quality and production efficiency. With decades of technical accumulation in the field of precision ceramics, the 4-inch 200-dot print head series launched by Kyocera Corporation of Japan has occupied an important position in the global industrial printing market with its excellent reliability and adaptability.

1. Technical features: The art of ink drop control created by precision ceramics

The core advantage of Kyocera's 4-inch 200-dot print head comes from its unique structural design and the application of material science. Compared with ordinary metal print heads, Kyocera uses a self-developed high-density silicon nitride ceramic flow channel with excellent corrosion resistance and thermal stability.

The temperature control system is another key technological breakthrough. The print head has a closed-loop system consisting of a high-sensitivity temperature sensor and a semiconductor heater, which can stably control the operating temperature within the range of ±0.5℃. This precise temperature control ensures the consistency of ink viscosity under different environmental conditions. Actual measured data shows that when the ambient temperature varies between 15-35℃, the ink droplet ejection velocity fluctuates by no more than 2%.

2. Functional analysis: Modular design thinking, adaptable to various scenarios

The Kyocera 4-inch 200-dot print head adopts a modular architecture, and its main functional units can be summarized into three subsystems: the drive control system adopts Kyocera's self-developed KMS-200 driver chip, supports 8-level grayscale adjustment, and the data transmission rate of each color channel is up to 200MHz; the ink circulation system includes main and auxiliary ink chambers and a two-way filter device, which can effectively prevent pigment precipitation. According to test data, after 500 hours of continuous work, the nozzle clogging rate is less than 0.5%; the maintenance system integrates automatic wiping and negative pressure cleaning functions, and the maintenance cycle can be extended to 3 times that of ordinary print heads.

The print head supports a variety of industrial-grade inks, including:

Water-based ink: suitable for food packaging printing, in line with FDA certification standards

UV curing ink: curing speed up to 150 meters/minute, hardness up to 3H

Solvent-based ink: outdoor weather resistance for more than 3 years without fading

Sublimation ink: transfer efficiency is as high as 95%

It is especially worth mentioning that it has strong adaptability to a variety of materials. Through the replaceable nozzle plate assembly, the same printhead platform can handle different inks with a viscosity range of 1-20cP. Test data shows that when switching ink types, it only takes 15 minutes to flush to adapt, which greatly improves the flexibility of the production line.

3. Industry application: key execution unit of intelligent manufacturing

In the field of packaging printing, Kyocera's 4-inch 200-dot printhead shows significant advantages. The production line of an international beverage company uses this printhead to print date batch numbers, achieving a 100% recognition rate at a speed of 600 bottles/minute, and the error rate is reduced from 0.8% to 0.02% compared with traditional inkjet equipment. Thanks to the buffer processing capability brought by the 200-dot matrix, its automatic compensation function can keep the character spacing consistent when the conveyor speed fluctuates by ±10%.

Electronic manufacturing is another important application scenario. In the PCB board marking process, the printhead can form clear marks on a 0.2 mm thick solder mask layer and can print characters as small as 0.6 mm. Comparative tests show that under the same conditions, its VOC emissions are 30% lower than similar products.

In the textile digital printing market, industrial-grade printers equipped with this nozzle can achieve 8-color simultaneous printing, with a production efficiency of up to 45 square meters per hour. The unique "ink drop positioning correction" technology can control the error between passes within ±5 microns, making the pattern overlap accuracy reach the industry-leading level.

IV. Maintenance and innovation: building a full life cycle service system

Kyocera has established a complete technical support system for this 4-inch 200-point nozzle. Its intelligent diagnostic system can record more than 50 operating parameters and perform predictive maintenance through dedicated software.

Daily maintenance: automatic wiping every 8 hours

Intermediate maintenance: negative pressure cleaning every week

Deep maintenance: ultrasonic treatment every month

Compared with similar products, Kyocera nozzles have a mean time between failures (MTBF) of up to 15,000 hours
